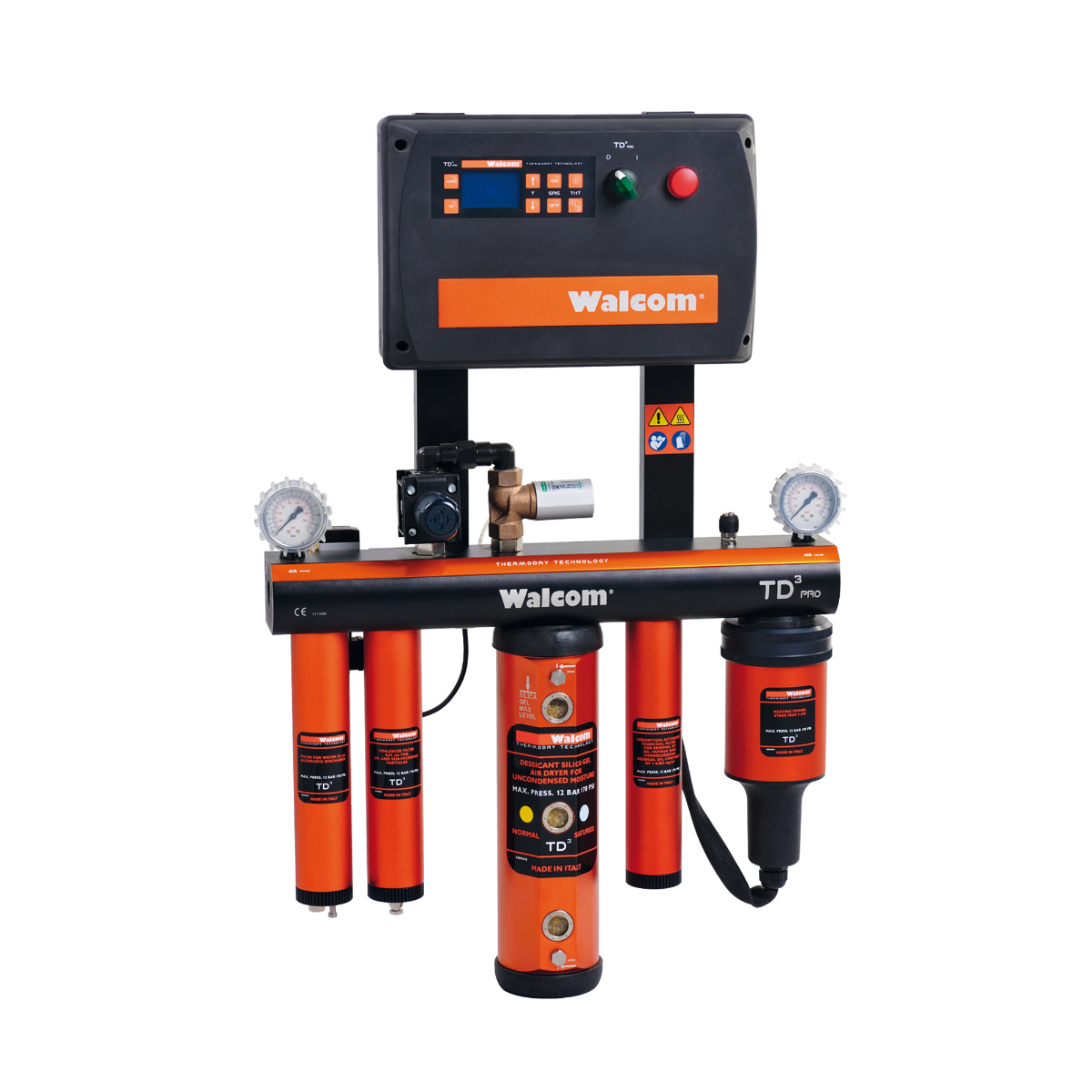

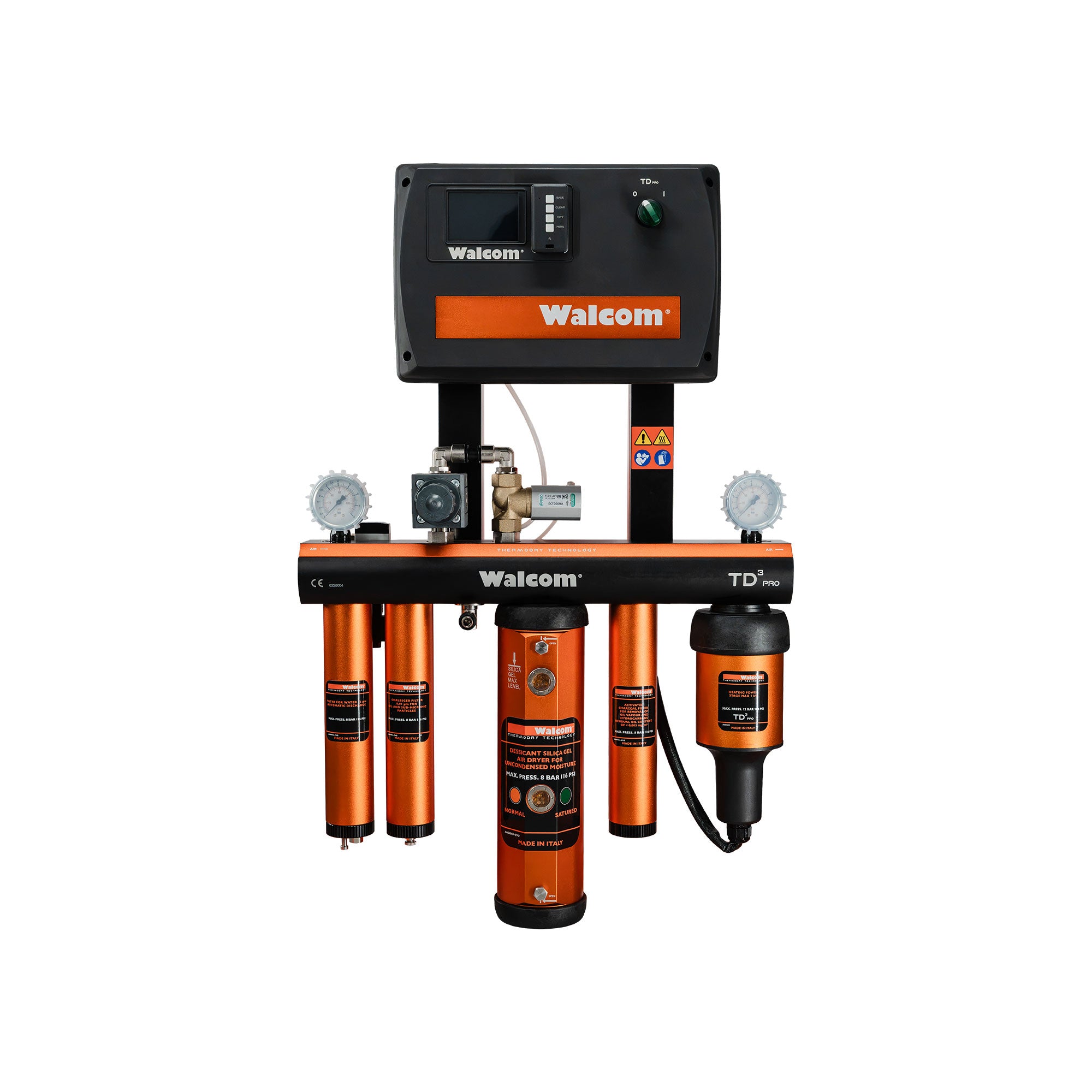

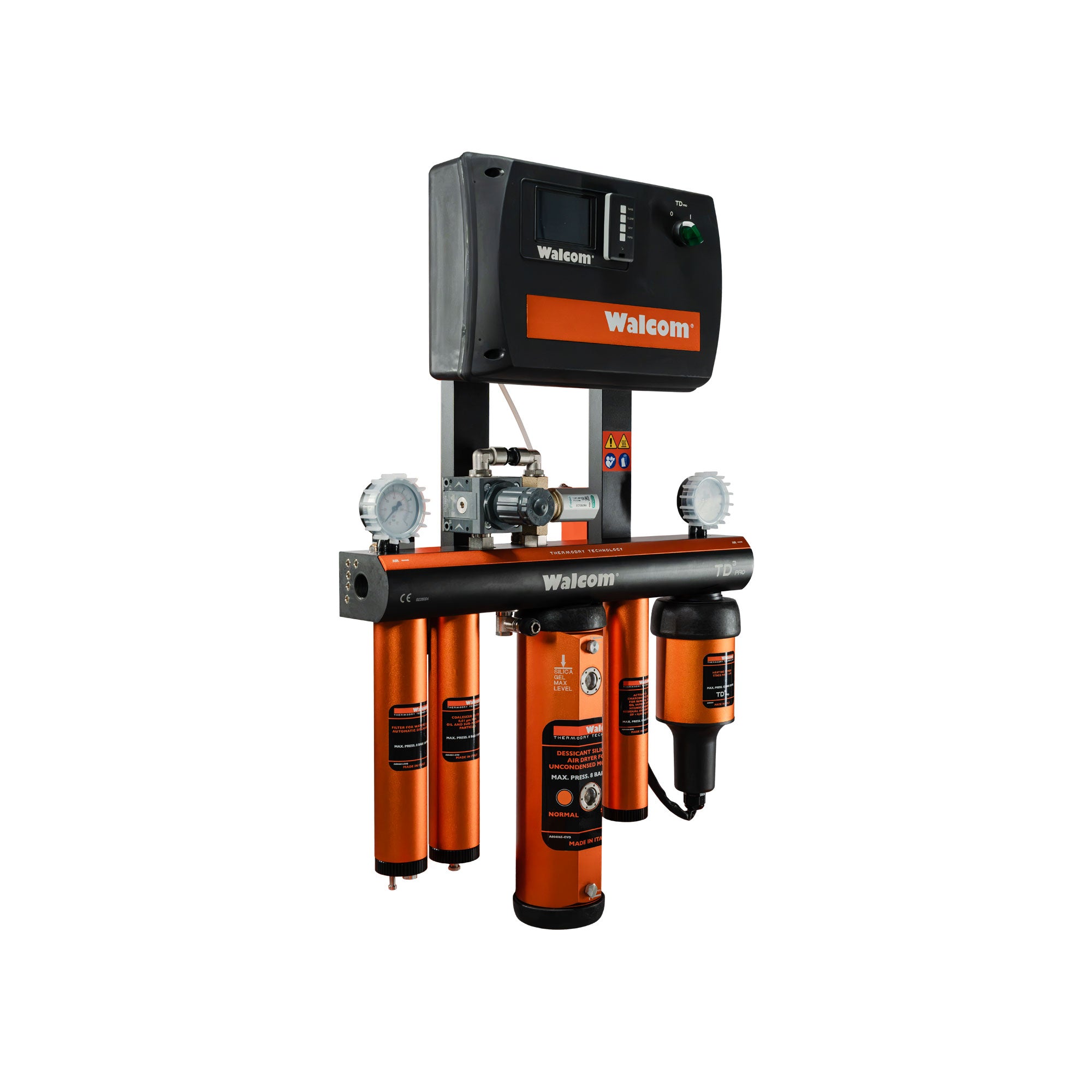

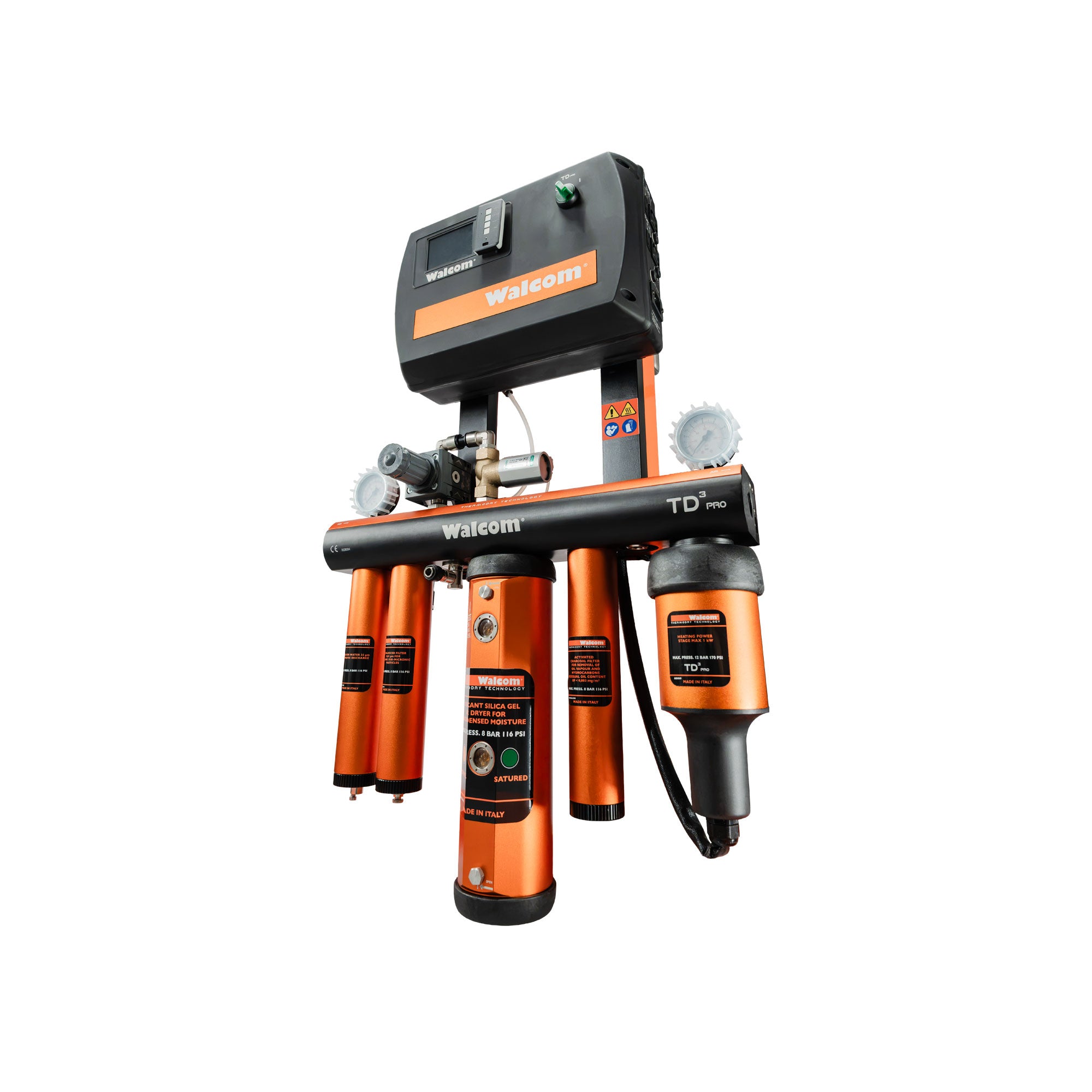

Cabin booth integrated air conditioning and thermoregulation system, IPH 12M hose included.
SKU: 60151/USA
Availability: Many In Stock
£5,300.00
£5,300.00
Please hurry! Only 0 left in stock
Subtotal: £5,300.00

Free Shipping

Free standard shipping on orders over $200

TD3 PRO UNIT

TD3 PRO UNIT

£5,300.00
TD3 PRO UNIT
TD3 PRO UNIT

TD3 PRO UNIT

£5,300.00
TD3 PRO UNIT
TD3 PRO UNIT
x
Cabin booth integrated air conditioning and thermoregulation system, IPH 12M hose included.
Technical data
Technical data
x
  • Ref. 60151**
  • Cabin booth integrated air conditioning and thermoregulation system
  • Central Body Anodised aluminium

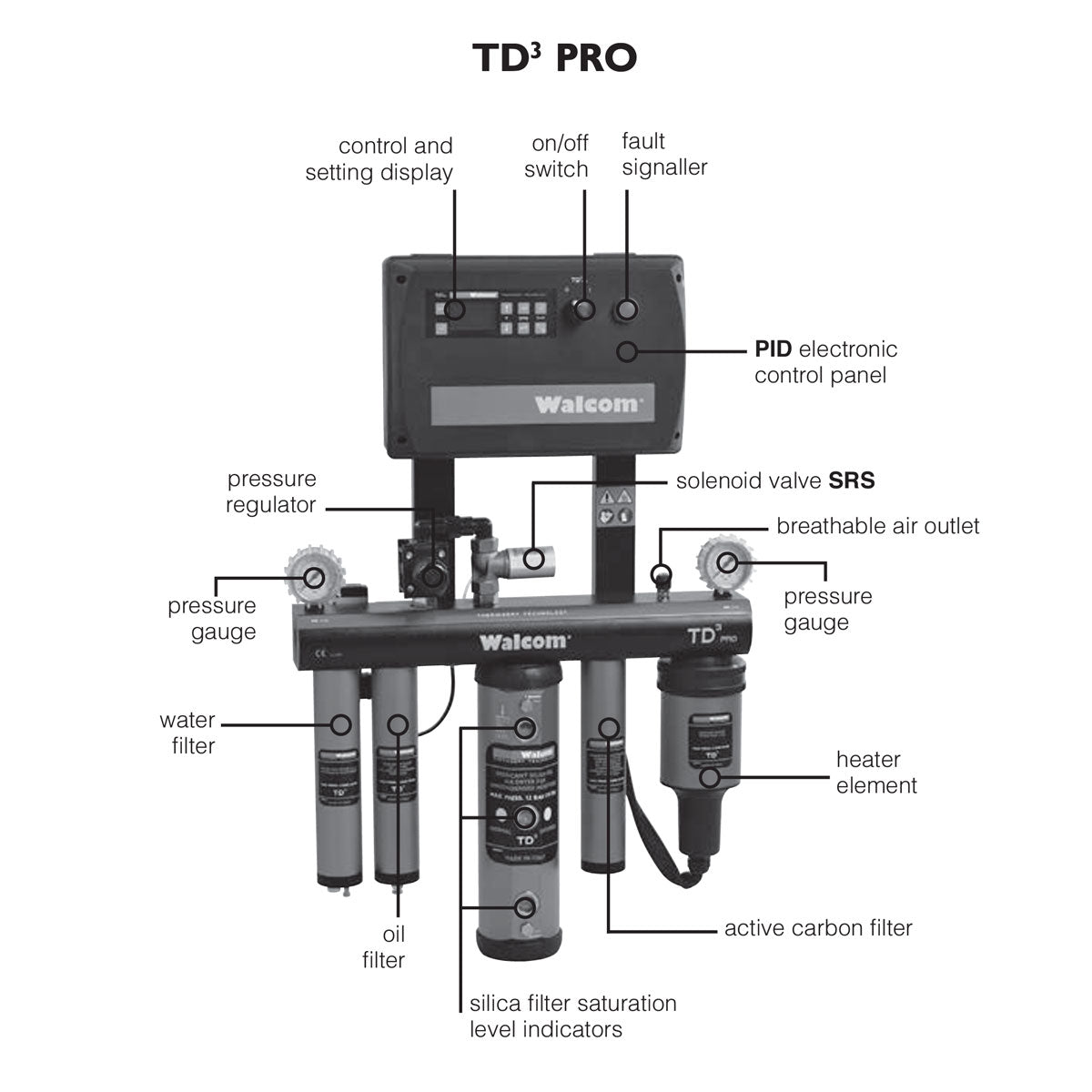

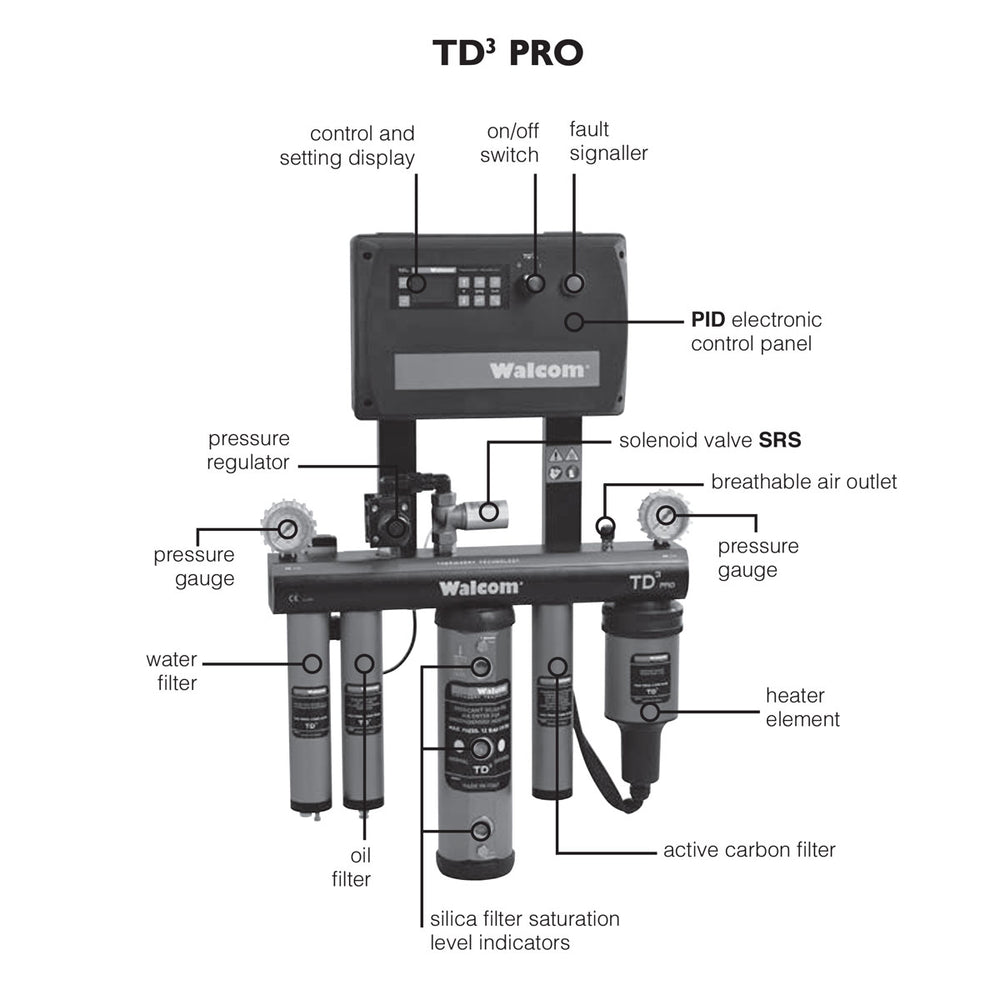

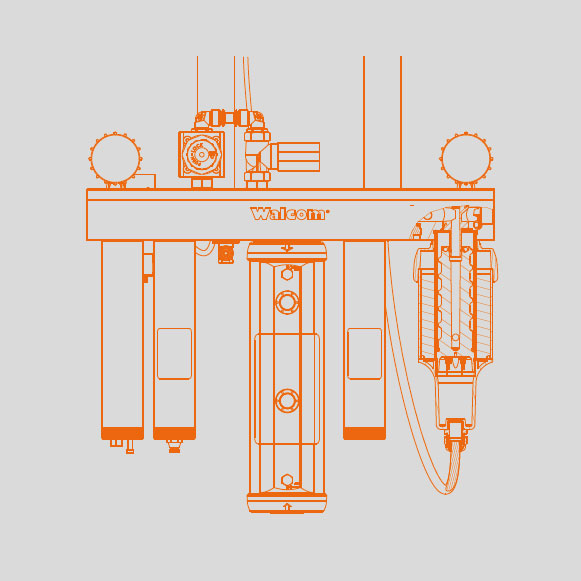

  • Composition:
  • 1) Synthetic fibre pre-filtering element that eliminates condensation. Automatic drain with safety rod for manual drain.
  • 2) De-greaser filter to eliminate residual pollutants. Manual drain.

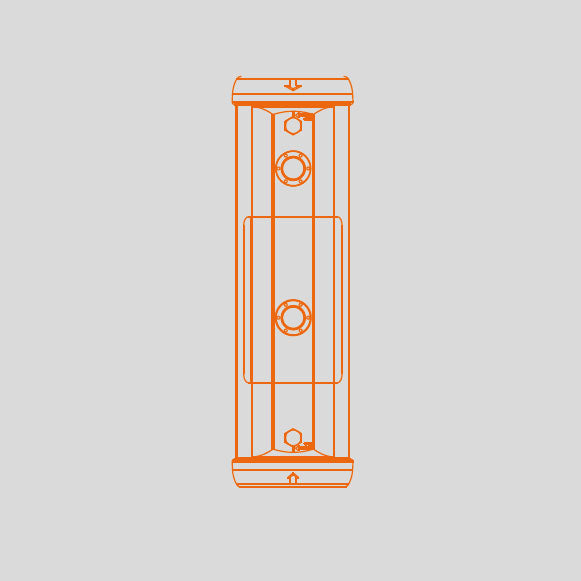

  • 3) Drying group with silica gel that reduces residual humidity in compressed air. Possibility or silica gel regeneration with TD3 Pro hot air flow SRS valve. Silica gel lasts max 1 year.
  • 4) Active carbon filter to eliminate all impurities and obtain breathable air. Max oil residue < 0.0003 mg/m^3

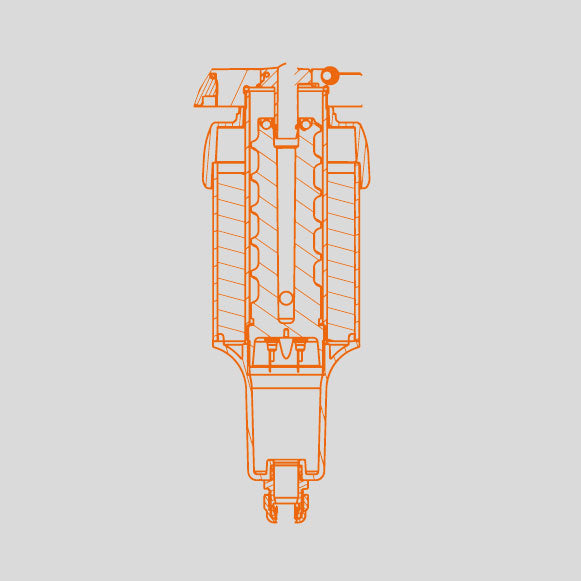

  • 5) Heating elemenent with 1200 W power controlled by an electronic unit with PID retroactive system and SCR heating power regulation.
  • Pressure regulator
  • Membrane regulation and automatic decompression
  • Air inlet F 1/2
  • Air outlet F 1/2
  • Filtering Power Air 5µ - oil 0.01µ
  • Working pressure 12 bar
  • Air consumption 1200 l/min to 6 bar
  • Weight 21 Kg
  • Combatible tube
  • ThT (12 m) - Ref.60161
  • ThT (17 m) - Ref.60163
  • ThT (17 m) - Ref.60163
  • ** Ref./T = with 1 remote control
