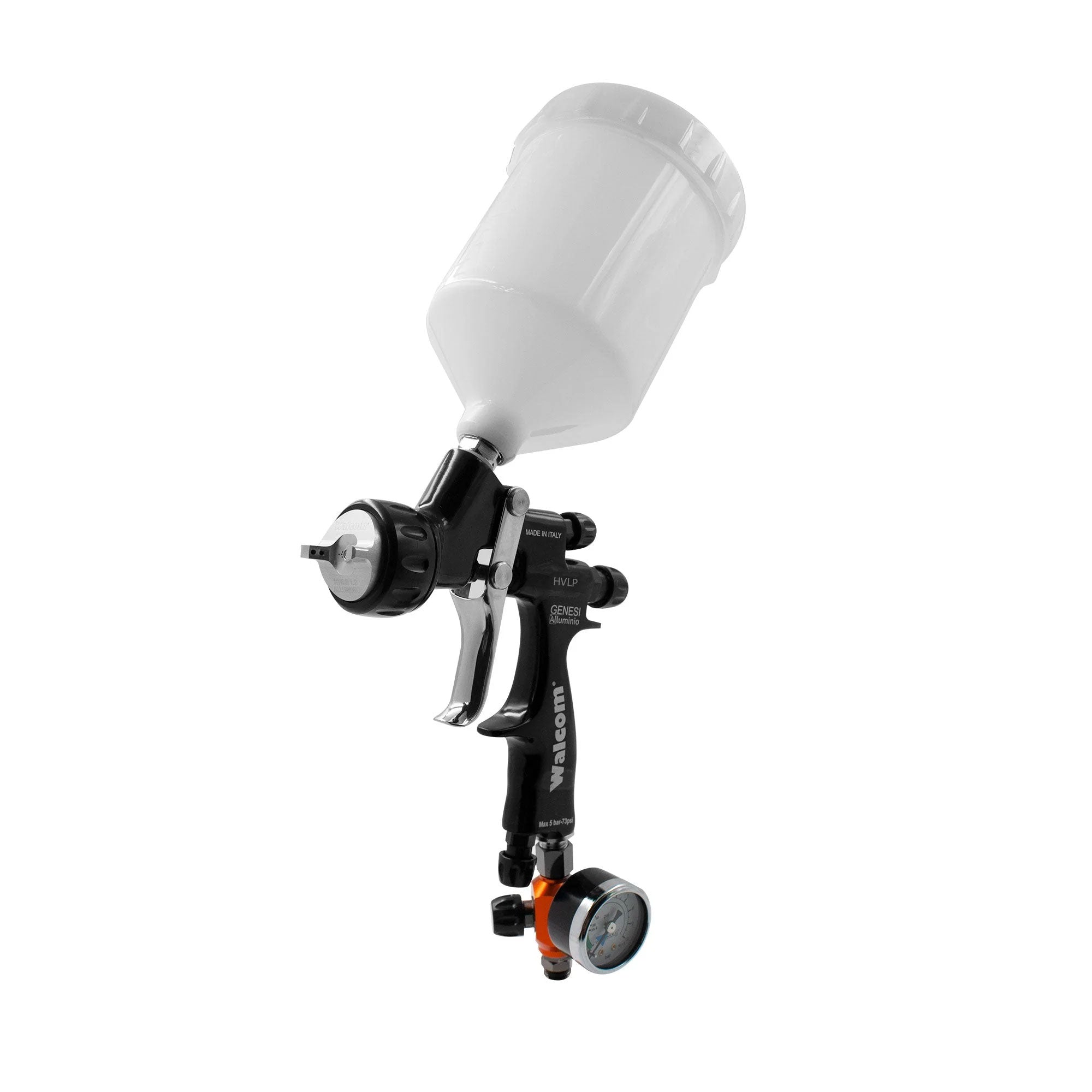

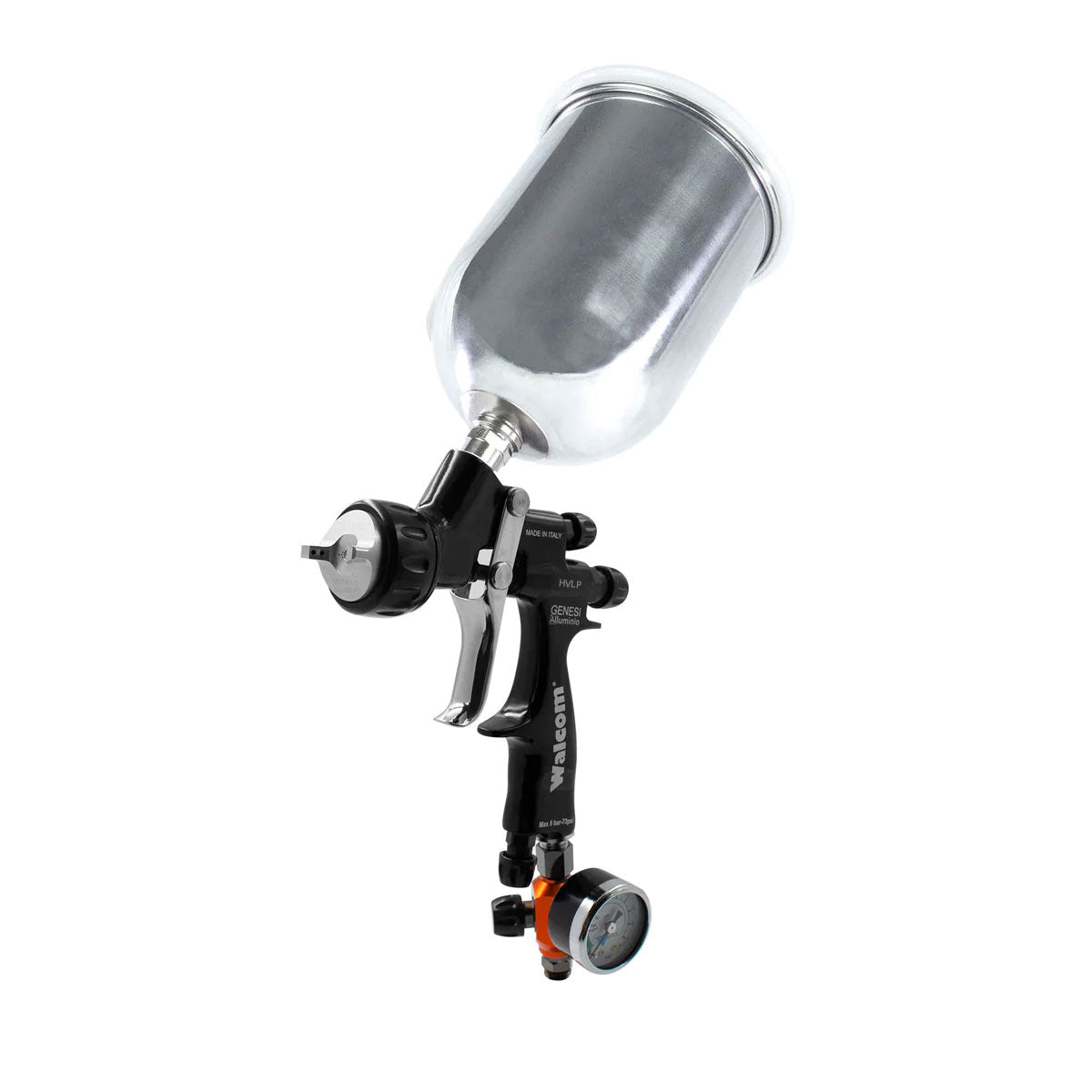

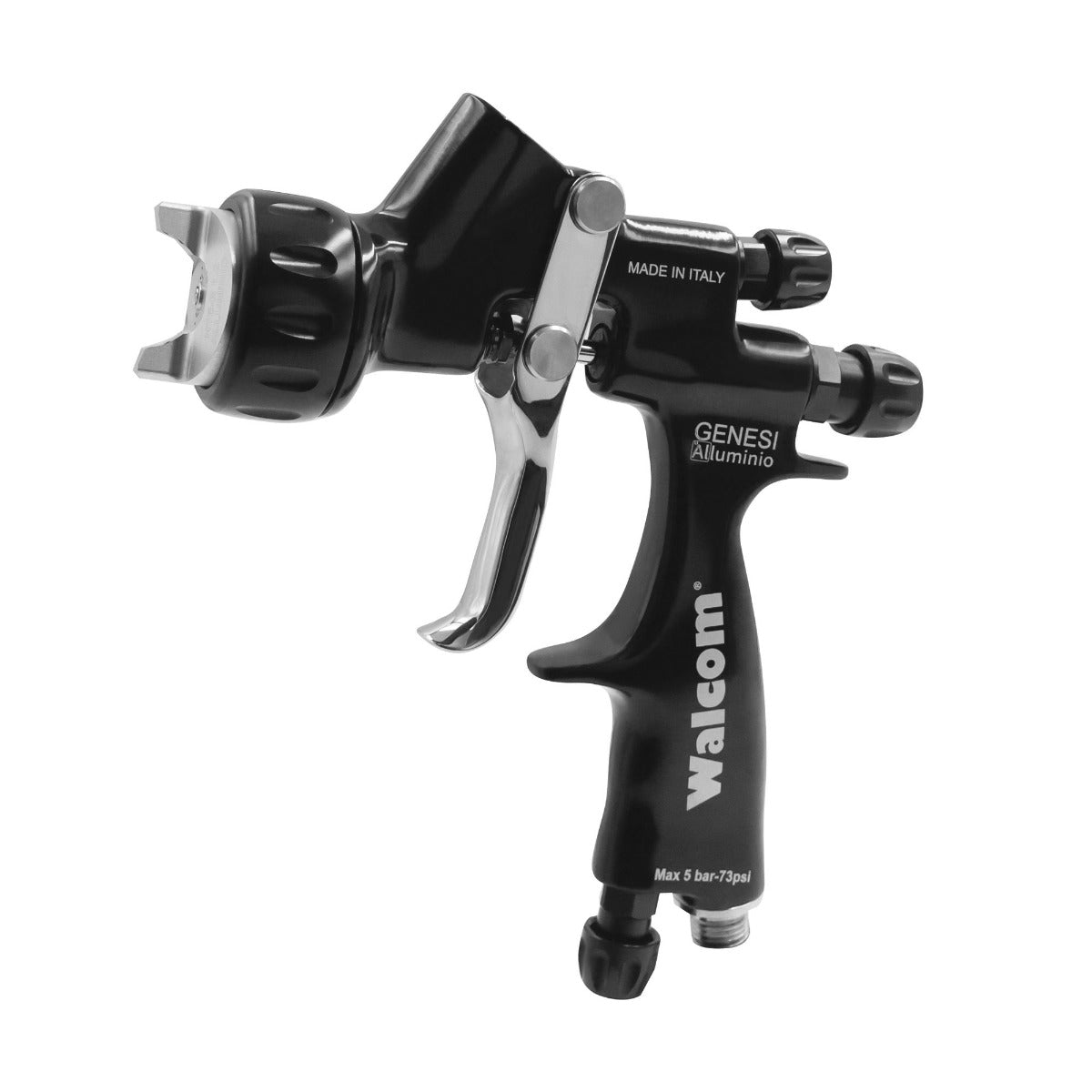

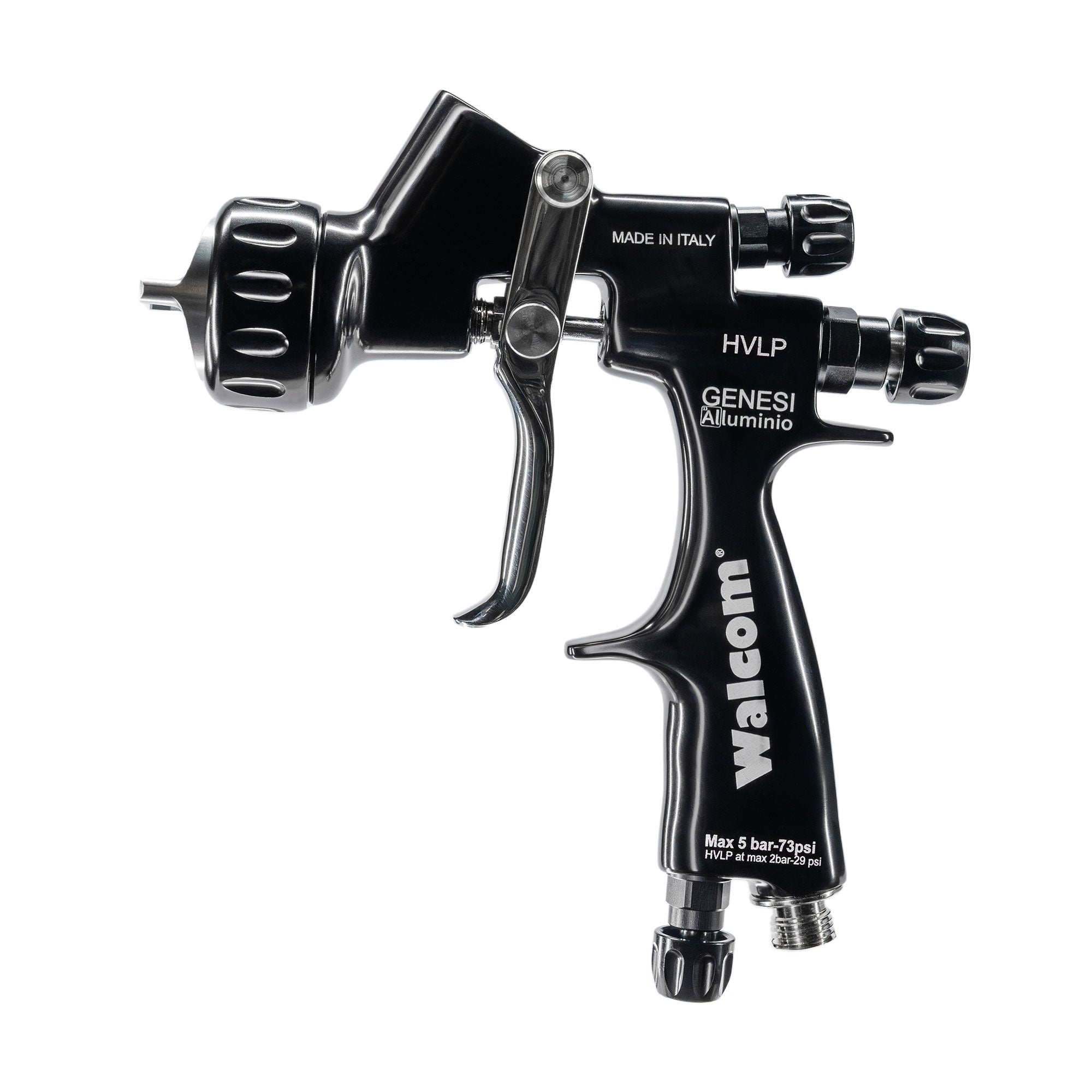

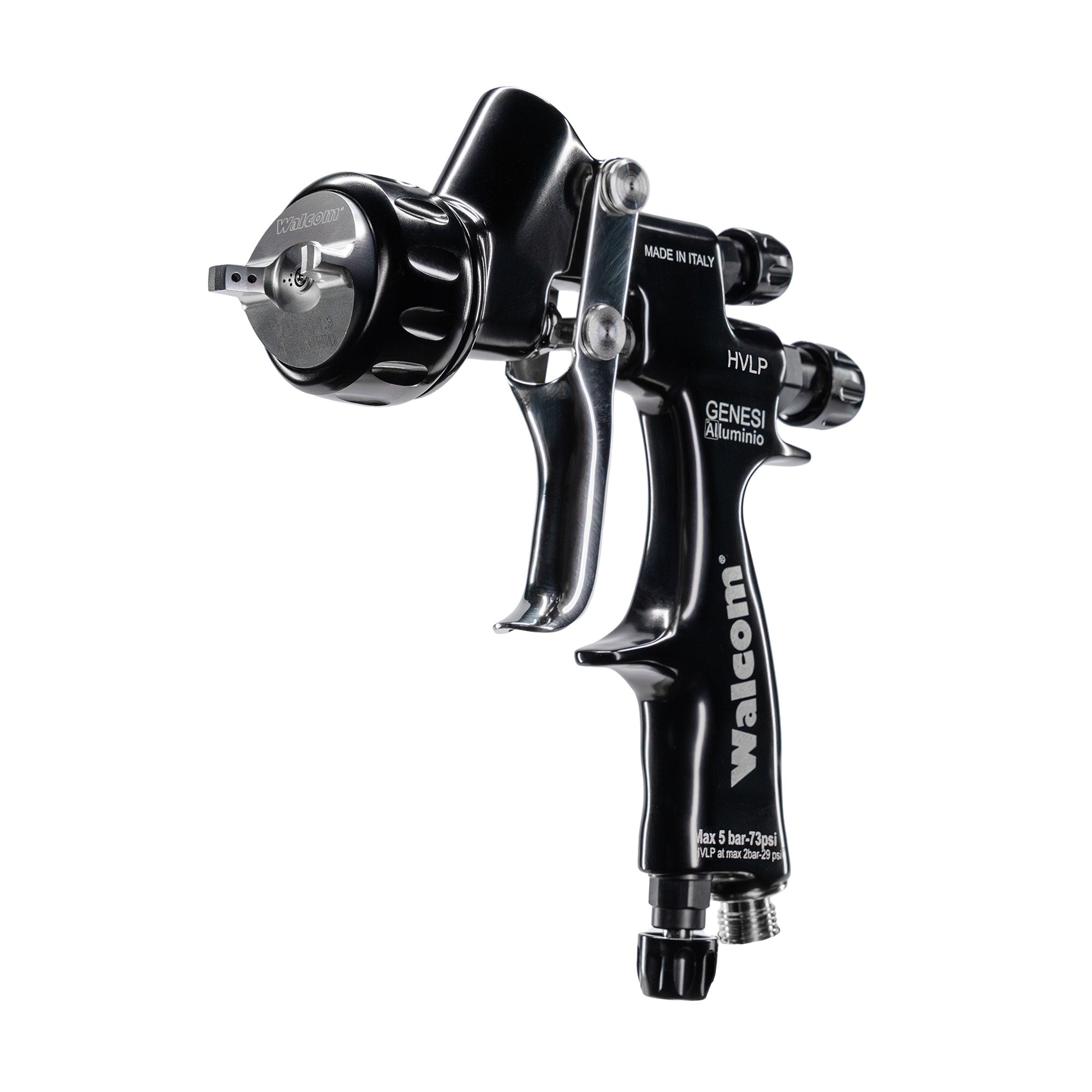

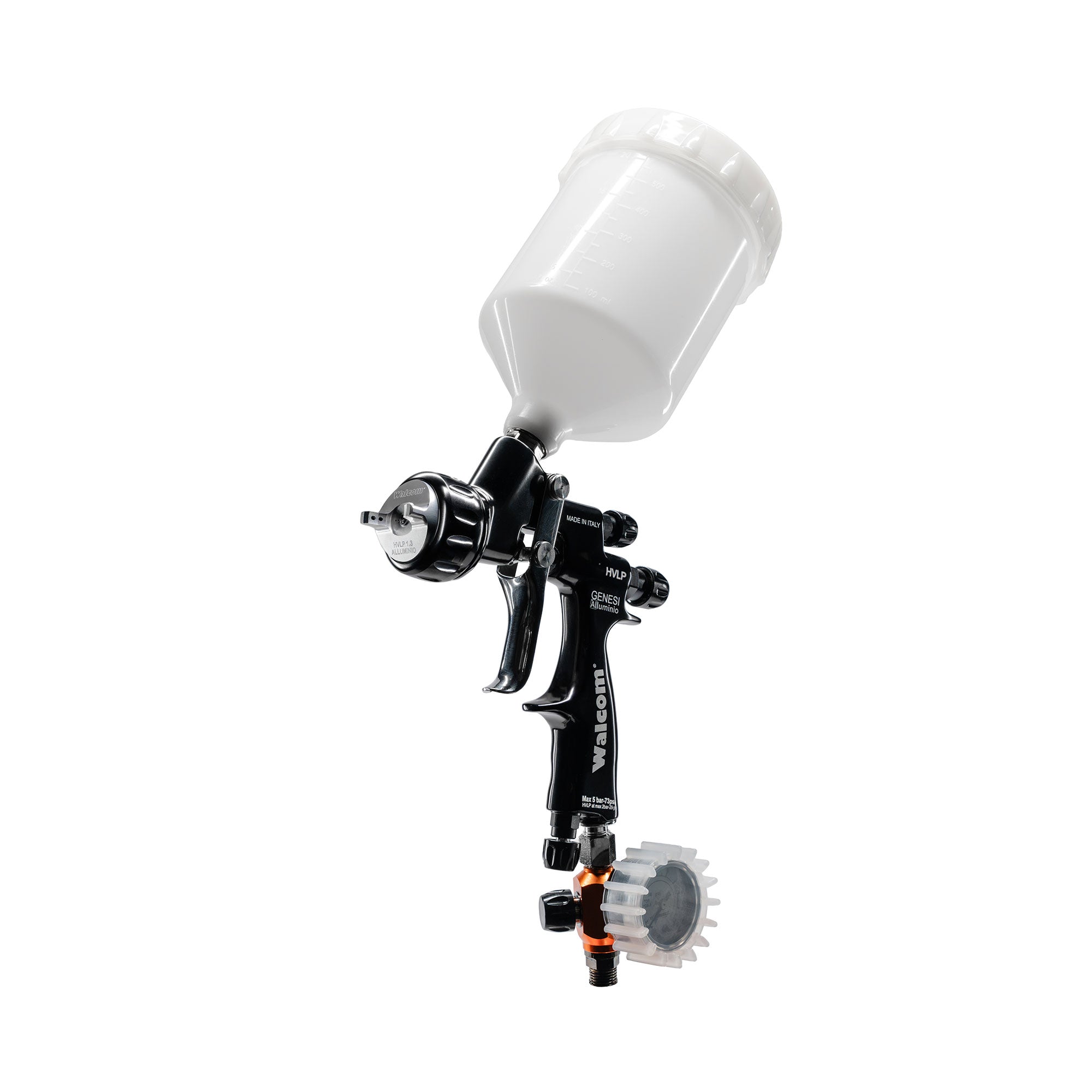

Genesi Alluminio HVLP
xSame performance of air consumption, pressure and adjustment than the Genesi Carbonio. Only 415gr weight with a forged aluminum hard black anodization spray gun body. Engineered for perfect clear coat atomization, it delivers a flawless finish with maximum comfort and control. Resistant to any solvent.
HVLP TECHNOLOGY
This spray gun use the standard HVLP technology.
Technical data
x| Body | anodized forged aluminum |
| Hat and ring | anodized aluminum |
| Air cap | anodized aluminum |
| Air cap ring | anodized aluminum |
| Nozzle | AISI 303 stainless steel |
| Needle-springs | AISI 303 stainless steel |
| Seal gaskets | self-lubricating PTFE (teflon) |
| Weight | 415 g |
| Operating air pressure | range 0.5 - 2 bar (7.2 - 29 psi) / HVLP max 2 bar (29 psi) |
| Air consumption | 380-415 1/min at 2 bar /13-14 cfm at 29 psi |
| Ø nozzle | 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.9 |
Maintenance
xSuitable fields of application
