FSRD 4 EVO

FSRD 4 EVO

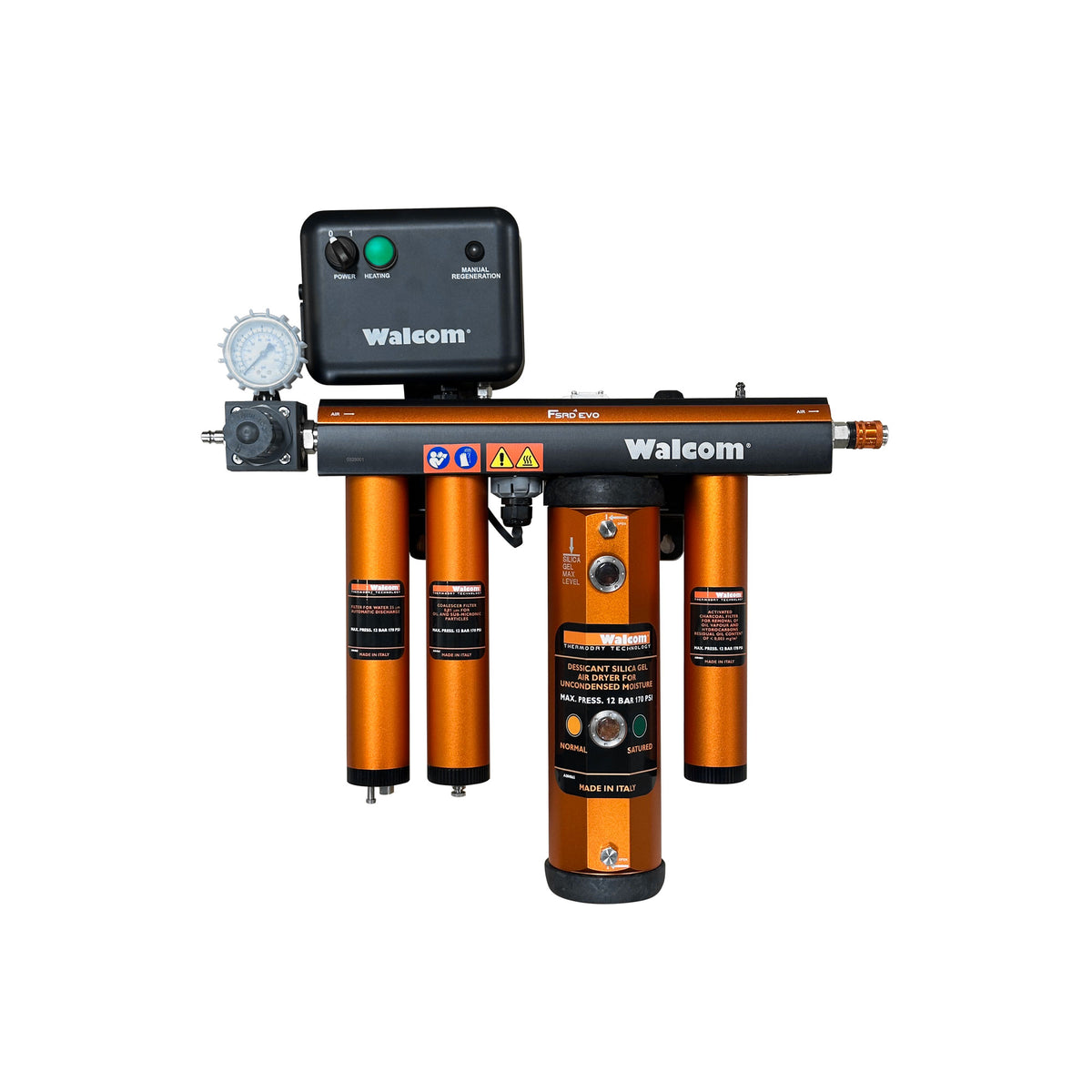

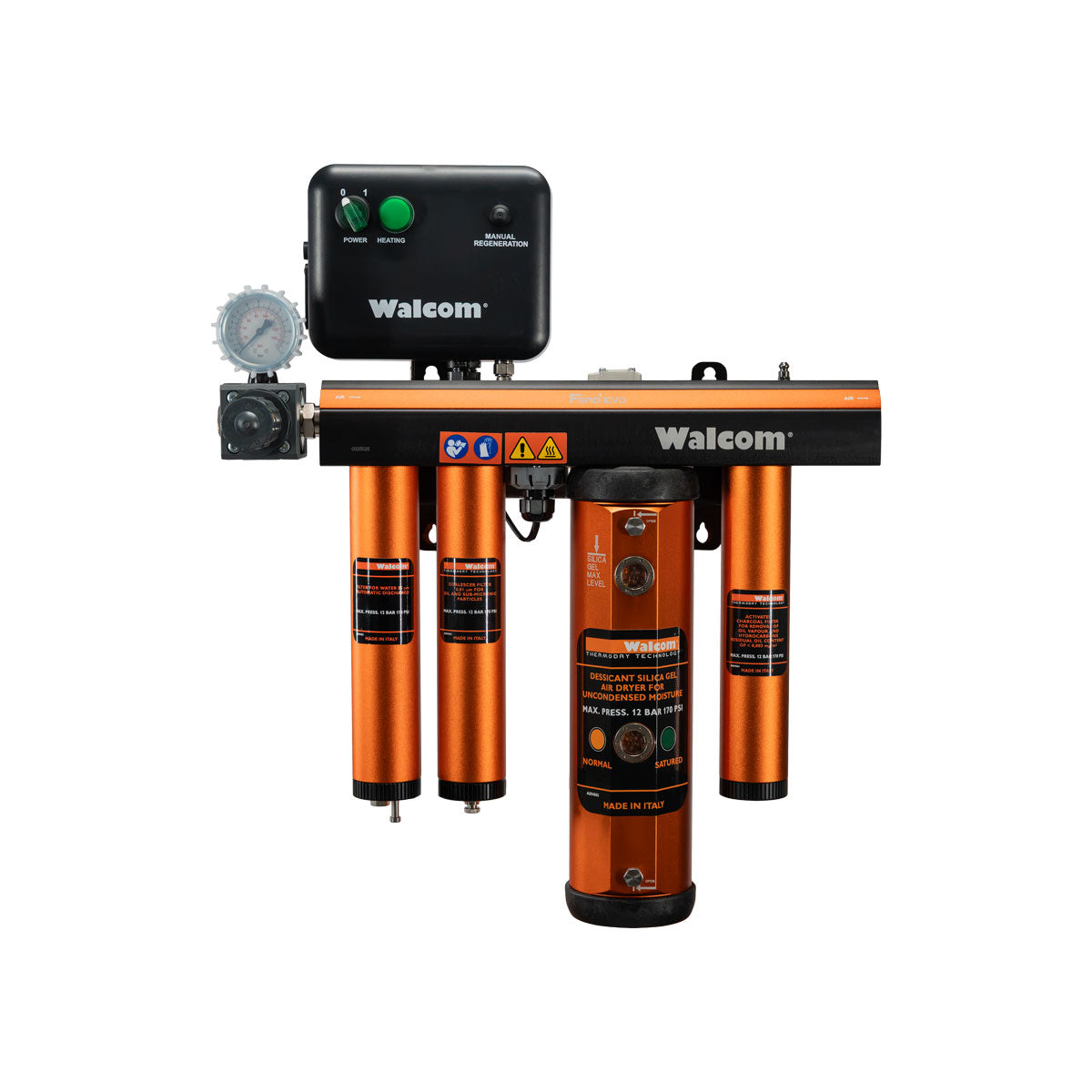

A modular filter system ideal for use in the spray booth. Composition: Pre-filtering element in sythentic fibre for the elimination of condensation. Automatic discharge. Oil-separating filter for the elimination of residual pollutants. Manual drainage tap. Silica dryer group to reduce residual humidity in the compressed air. Nr. 3 saturation indicator lights. Active carbon filter to eliminate all impurities and obtain breathable air.
SKU: 60177/USA
Availability: Many In Stock
£4,551.00
£4,551.00
Please hurry! Only 0 left in stock
Subtotal: £4,551.00

Free Shipping

Free standard shipping on orders over $200

FSRD 4 EVO

FSRD 4 EVO

£4,551.00
FSRD 4 EVO

FSRD 4 EVO

£4,551.00
Description
Description
x

A modular filter system ideal for use in the spray booth.

Composition:

  1. Pre-filtering element in sythentic fibre for the elimination of condensation. Automatic discharge.
  2. Oil-separating filter for the elimination of residual pollutants. Manual drainage tap.
  3. Silica dryer group to reduce residual humidity in the compressed air. Nr. 3 saturation indicator lights.
  4. Active carbon filter to eliminate all impurities and obtain breathable air.
Technical data
Technical data
x

Automatic regeneration of silica gel using integrated resistance and control unit. Max residue < 0.0003 mg/m'. Central body: anodized aluminum Air inlet: F 3/4"; air outlet: n° 2 from M 1/4" Filtering power: water filter 25 um - oil 0.01 um - carbons < 0,0003 mg/m?. Operating air pressure: 12 bar / 174 psi Air consumption: 1200 l/min to 6 bar / 42 cfm at 87 psi Weight: 11.5 Kg Non-ATEX product, to be mounted outside the paint booth.

Product Manual
Product Manual
x

Product manual for Thermodry

Download
